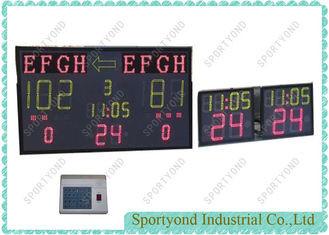

Description:
The digital scoreboard features sports information for basketball
game.
The scoreboard displays Local and Visitor scores to 199,Team name
to 8 letters,Time to 99:59,Fouls to 9,
Period to 9,Shot clock to 99,time out to 4and indicates
possession.When game time is less than one
minute,the scoreboard displays time to 1/10 of a second.
1) Scores: 20" -- green
2) Time: 10" -- green
3) Period: 10"-- green
4) Built-in shot clock:12"-- red
5) Serve:arrow -- red
6) Fouls: 10"-- red
7) Time out indicators: --red
8) Team name: red
9) LED:Super bright LED, >100000hours life
10) Input power: AC100V~240V,50/60Hz
11) Power consumption:< 180W
12) Wireless RF console
13) Product Dimensions:3000*1500*75mm
14) Weight:80KG
Characteristics:
1.Adopt single-chip to control, software to set up time, it is with
high degree of accuracy.
2.Easy to operate , in line with people's operating habits.
3.Adopt imported LED with high brightness as display unit, it can
be viewed easily.
Functions:
1.Control panel is available in Wireless RF modules for the
basketball scoreboard.
2.The basketball scoreboard shows Local and Visitor scores,team
name,period,fouls,inside shot clock,
time out and poss indicators,and also features a four digits clock.
3.With the function of exchange side and whistle sound after game
time/shot clock runs out.
Specifications:
| Model | SPY-B3015 |
| Scorer display | Letters,Digits |
| LED Colors | Red,Green |
| Viewing distance | 160m |
| Usage environment | Indoor,outdoor |
| Control method | Wireless RF console |
| Wireless communication distance | >100m |
| Power consumption | < 180W |
| Input power | AC100V~240V,50/60Hz |
| Housing material | Aluminum |
Advantages:
1.Beautiful style display and simple operation
2.Superior design can be used for indoor or outdoor.
3.Wide input power range:AC100-240V,50/60Hz,this scoreboard can be
used in any country or region.
Maintenances:
1.Turn off the power when you don't use.
2.Please connect the power cable according right way.
3.Clean with soft cloth.
