Quick Detail:
| Name | Huge scoreboard,big electronic scoreboards, basketbal led scoreboard,digital scoreboards maker, basketball scoring sign equipment | Application | Digital points,characters team name and shot time for basketball match |
| Color | Red,green,yellow | Feature | Ultra bright,low-energy,long life LED |
| Material | Aluminum Housing | Certificate | CE,RoHS,FCC |
Description:

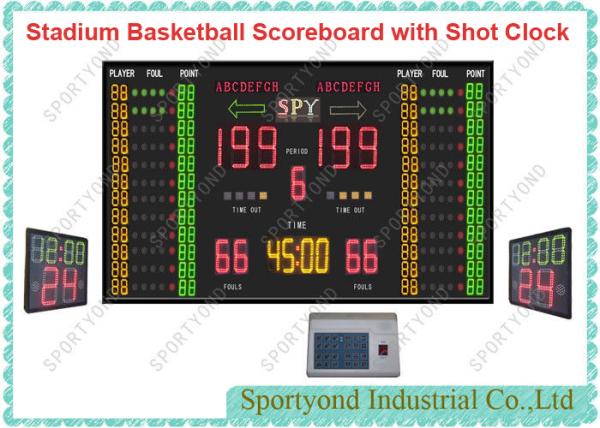

The big scoreboard features general game information for basketball
in Gyms.
The scoreboard displays Home and Visitor Team name to 8
letters,Scores to 199,Time to 99:59,
Total Fouls to 99,Personal fouls to 5 LED dot,Player number to
99,Player points to 99,Period to 9,time
out to 4 small LED block and indicates possession,and independent
shot clock to 99 with period time to
99:59.
1) Scores: 15" -- red
2) Time: 12" -- yellow
3) Period: 12"-- red
4) Player: 5"-- yellow
5) Personal foul: green and red
6) Point: 5"-- green
7) Team name: red
8) Serve:arrow -- green
9) Fouls: 12"-- red
10) Time out indicators: yellow
11) Indepensent shot clock and time: 8"--red&6"--yellow
12) LED:Super bright LED, >100000hours life
13) Input power: AC100V~240V,50/60Hz
14) Power consumption:< 350W
15) Wireless RF console
16) Scoreboard Dimensions:4000*2000*75mm
17) Shot clock with time:540*470*75mm
18) Weight:180KG
Functions:
1.Control panel is available in Wireless radio frequency modules
for the basketball scoreboard.
2.The basketball scoreboard shows Home and Visitor scores,team
name,period,total fouls,personal foul,
player number,player point,time out and poss indicators,independent
shot clock with game time and also
features a four digits clock.
3.With the function of exchange field and whistle sound after game
time/shot clock runs out.
4.When game time is less than one minute,the scoreboard displays
time to 1/10 of a second.
Characteristics:
1.Adopt single-chip to control, software to set up timing, it is
with high degree of accuracy.
2.Easy to operate , in line with people's operating habits.
3.Adopt imported LED with high brightness as display unit, it can
be viewed easily.
Specifications:
| Model | SPY-B4020S |
| Scorer display | Letters,Digits |
| LED Colors | Red,Green,Yellow |
| Viewing distance | 150m |
| Usage environment | Indoor,outdoor |
| Control method | Wireless RF console |
| Wireless communication distance | >100m |
| Power consumption | < 350W |
| Input power | AC100V~240V,50/60Hz |
| Housing material | Aluminum |
Advantages:
1.Wonderful style model and simple operation
2.Superior design is suitable for indoor or outdoor.
3.Wide input power range:AC100-240V,50/60Hz,this basketball
scoreboard can be used in any country or
region.
Maintenances:
1.Turn off the power when don't use.
2.Please connect the power cable according right way.
3.Clean with soft cloth.
